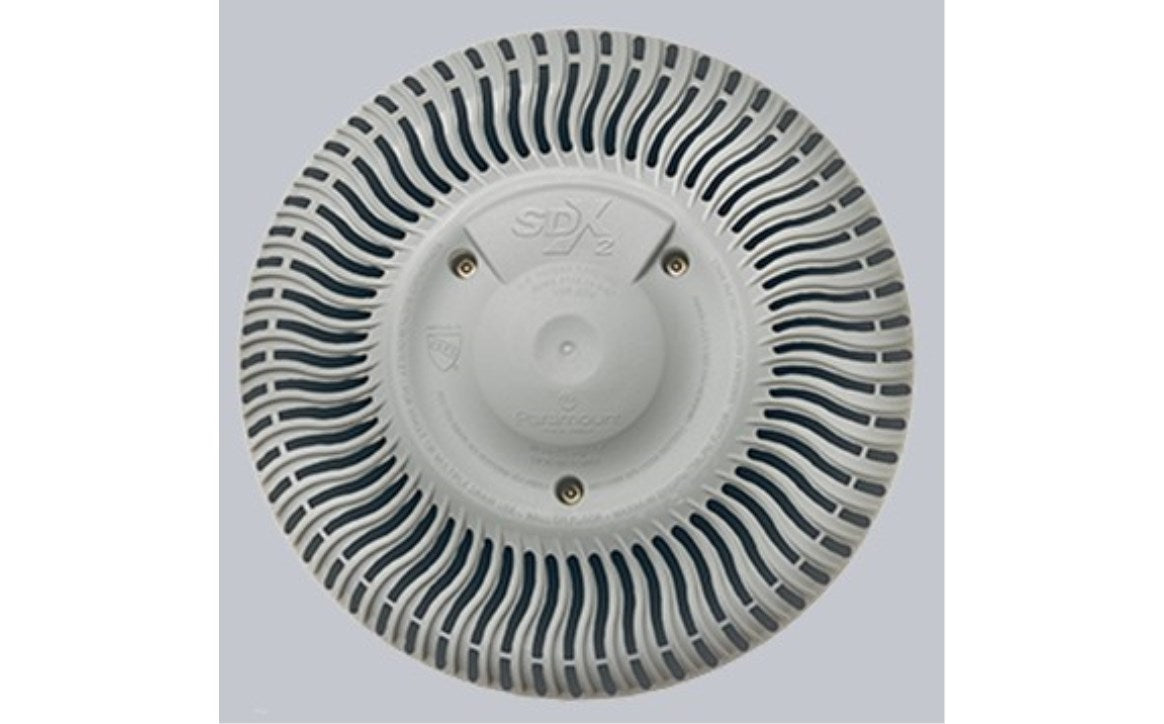

• Paramount SDX2 004192221303 Retro Safety Drain Black for Concrete Pools

Hayward SDX2 Retro F/ Concrete 004-192-2213-03 Black

Paramount SDX2 004192221303 Retro Safety Drain Black for Concrete Pools is a high flow suction outlet suitable for use as a wall fitting, or as a floor fitting when debris removal is not a concern. Available for concrete, vinyl and fiberglass pools, SDX2 performs at a very high flow rate while operating at one of the lowest velocity ratings in the industry. SDX2 boasts a flow rating of 188 gpm on the floor and 154 gpm on the wall.

GTIN:
SKU: 004192221303
Brand: Hayward
In stock
$61.47
$93.00
Tax & Shipping calculated at checkout*
  • Free Shipping On orders over $100
  • 30-Day Returns Easy return policy
  • Warranty Manufacturer warranty included

Paramount SDX2 004192221303 Retro Safety Drain Black for Concrete Pools is a high flow suction outlet suitable for use as a wall fitting, or as a floor fitting when debris removal is not a concern. Available for concrete, vinyl and fiberglass pools, SDX2 performs at a very high flow rate while operating at one of the lowest velocity ratings in the industry. SDX2 boasts a flow rating of 188 gpm on the floor and 154 gpm on the wall.

Key Features

  • No sump required
  • Low velocity 1.396 feet per second at the maximum at the floor (188 gpm) flow rating
  • Patented ribbed design achieves very high flow via 60 independent flow partitions
  • Approved as a bulkhead fitting as the safety is in the cover and backplate
  • Anti-vortex center shield block contact with direction suction
  • SDX2 Comes with a plaster ring for new applications
  • SDX2 Retro comes with an adaptable backplate to retrofit suction fittings up to 10 Inch diameter
